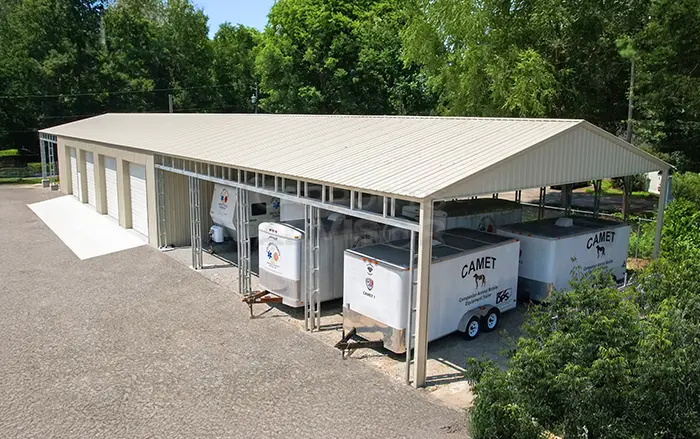

40x153x14 Multi-Bay Storage Building Specifications
The 40′ x 153′ x 14′ multi-bay steel storage building is a heavy-duty structure designed to offer a combination of fully enclosed storage and open RV parking bays. Featuring strong vertical framing, multiple entry points, and insulated sections, this building is perfect for large-scale commercial, industrial, or agricultural storage needs.
Below are the detailed specifications for this steel storage building:
Main Building (40x153x14)
- 26 GA panels on the entire unit
- Certification: 140 MPH wind / 50 PSF snow load
- Clay roof with White trim finish
- Fully enclosed 40×73 utility section (mounted 27′ from one end)
- (2) Vertical interior end walls (1 mounted @ 27′, the other at 73′ from the first end wall)
- (2) Vertical gable ends
- (1) Additional truss @ 27′ mark
- (4) 12′ x12′ frameouts
- (1) 36″x80″ walk-in door for convenient entry
- (1) 40′ x73′ section fully insulated with woven R-17 insulation
- (4) 12′ x12′ side entries (right of center section, unsheeted)
- (2) 12′ x12′ side entries (left of center section, no sheeting)
- Colored screws for a polished, professional finish
Additional Notes
- Requires a lift for professional installation
NOTE: This steel structure is only available in AL, AR, FL, GA, IN, KY, KS, LA, MS, MO, NC, OH, OK, PA, SC, TN, TX, VA, WV, MD, NJ, DE.
